Our Cast Iron ADA package is perfect for any mid - heavy duty load class needed. System is rated at C Class - 55,000 LBS and fitted with a powder coated ductile cast iron grating for longevity and durability. Grating is ADA and Heel Proof Compliant as well.
Each channel is 3.3 ft in length, with a tongue and groove connection so you can attach end to end to create a longer and custom size run. In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth. See below for channel depth outlet configurations.
Channel Articles
2" Depth - PC8050 - 2" bottom outlet
3" Depth - PC8010 - 4" bottom outlet
4" Depth - PC8020 - 4" bottom outlet - 3" end cap outlet - 3" side outlet
6" Depth - PC8000 - 4" bottom outlet - 3" end cap outlet - 3" side outlet
8" Depth - PC8040 - 4" bottom outlet - 3" end cap outlet - 3" side outlet
Material ............. PPE Plastic
Dimensions ....... 39.4"L x 5.8"W
Load Class ....... C Class - 55,000 LBS
INCLUDED IN PACKAGE
1 - Channel Depth of Choice
2 - Units of C Class Ductile Cast Iron Gratings
2 - Grating Fasteners
2 - End Caps (Per Order) - Additional end caps at checkout.
2" Depth Channel Spec
3" Depth Channel Spec
4" Depth Channel Spec
6" Depth Channel Spec
8" Depth Channel Spec
Grating Specification

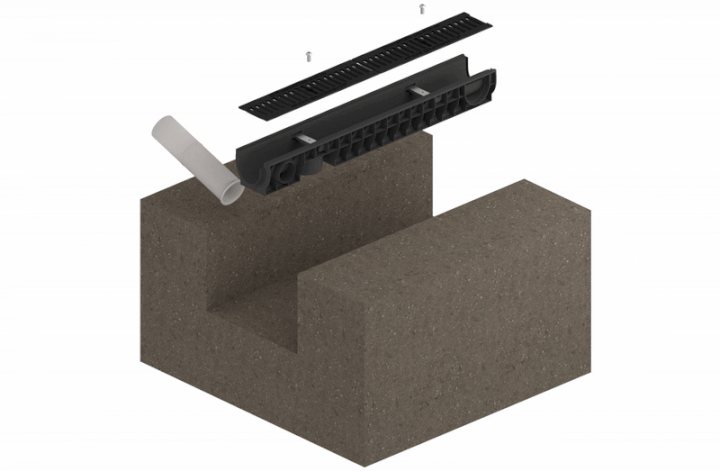

Trench Drain Installation
1. Prep your area - prep your channel width and depth accordingly to the trench drain you purchased from us. You need a good amount of room (3-5 inches) to set your channel and pour or fill around it to have a nice level sound area with your finished project.
2. If pouring concrete, make sure the base (2-4 inches) is leveled out according to your site plan. Wait for the concrete to completely set before moving on.
3. Set your channels on the concrete pad, attach together and connect your pipe outlets according to your design. Pipe connections are designed for PVC and Drainage tile - if you wish to utilized a corrugated pipe, please use a rubber coupling with clamps. That makes for a snug fit. Seal all channels with clear silicone and make sure they are water tight and dry before your final concrete pour.
4. Standartpark recommends leaving your gratings in the channel when you are doing your final pour - this will alleviate any instances of your channels bending while the concrete sets. This is important so your gratings fit nice and snug after the concrete settles.
5. Pour and wait - Thats all!

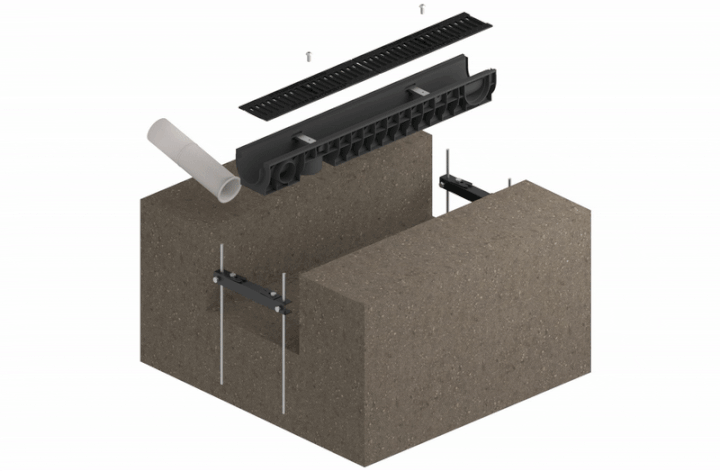

NOTE - This package can also be used with our channel installation brackets for rebar installation (hanging installation).
