22x22 Catch Basin Green Plastic Grate PKG

  • 22" Square Catch Basin with plastic grating
  • Connects to 6,8,10, and 12 inch PVC or corrugated pipe
  • ADA and Heel Proof Compliant
  • Sediment basket available as optional purchase
  • More product details below
$350.00
Free Shipping Over $99
FedEx 3-5 Days

Our largest size we currently offer. Our 22x22 inch catch basin will handle almost any amount of runoff that you need in your system. Comes equipped with NEW GREEN plastic grating -  and 6",8",10" and 12" PVC or corrugated pipe connections. Whichever your project needs.

BASIN SPEC SHEET

PARAMETERS

Article ................................ SWI8570-C-GRN

Material ............................. PPE Plastic

Dimensions ....................... 22" L x 22" W x 22" H

Load Class ....................... A - 3,300 LBS

INCLUDED IN PACKAGE

1 - 22x22 Catch Basin

- Heavy Duty Plastic Grate

  Basin Specification Sheet

  Grating Specification Sheet

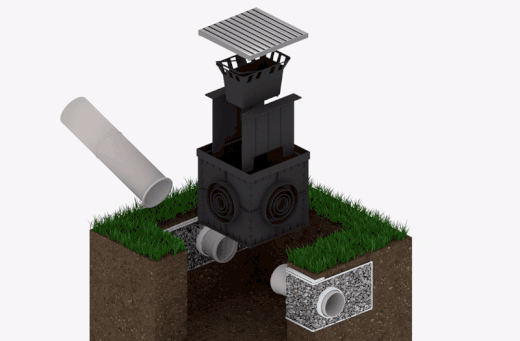

Catch Basin Installation

1.  Make sure you leave 3-4 inches on all sides for your system installations during your dig. This includes your bottom base area.

2. Take in account your outlet or piping connection within your prep.

3. Test your basin to pipe connection before placing or setting your basin.

4. Pour a good 3-4 inch base and let set 75% cure.

5. Set basin and pour around all sides and let set - make sure to leave your grating within your basin to avoid movement when concrete settles.

NOTE - this can all be done with dirt / grass / gravel if needed. Concrete is require if heavy loads are to be applied to basin!
