Spark 2 - 4 Inch premium channel with square basin

  • 4" Internal trench drain system
  • Connect 90 degree without adapters anywhere on the system
  • Snap and lock connection for channel to channel lock
  • 4" Bottom outlet connection included in packages
  • Gratings remove and snap in easily for easy access
  • Catch Basin Included in package with basin adapter
  • Pedestrian rated system
  • More product information below
$130.00
Free Shipping Over $99
FedEx 3-5 Days

Our Spark Premium channel is the NEW solution from Standartpark for your home or garden needs. Channels lock end to end with a snap connection for easy installation. 90 degree turn attachments are all the way down both sides of the channel. Meaning you can turn right or left anywhere with snap connections on either side. NEW galvanized stamped steel grates simply snap into place, and are easy to remove for cleaning. Channels are 39 inches in length, and 5 inches in width.

SPEC SHEET

PARAMETERS

Article ............ NP-PC0881011

Material ......... PPE Plastic / Galvanized Stamped Steel

Dimensions ... 39.4"L x 5.3"W x 2.2"H

Weight ........... 2.5 LBS

Load Class .... A15 - 3,300 LBS

COMES WITH 2 END CAPS

ONE ADAPTER TO BASIN

ONE CATCH BASIN

  CHANNEL SPECIFICATION PDF

  Basin Specification Sheet

Spark System Installation



Concrete -

1. Prep the site and trench size

2. Line up your outlet piping.

3. Pour your 2-3 inch concrete base at the bottom of the trench. And let it set 75% cure.

4. Set outlet pipe to channel connection. Connect all channels , angles, end caps to your system. And weight down your system. (you can place sand bags, large bricks, and so on). This is to make sure the channel does not moved during concrete pour and/or settling when concrete expands.

5. Pour concrete and let set for 24 hours.

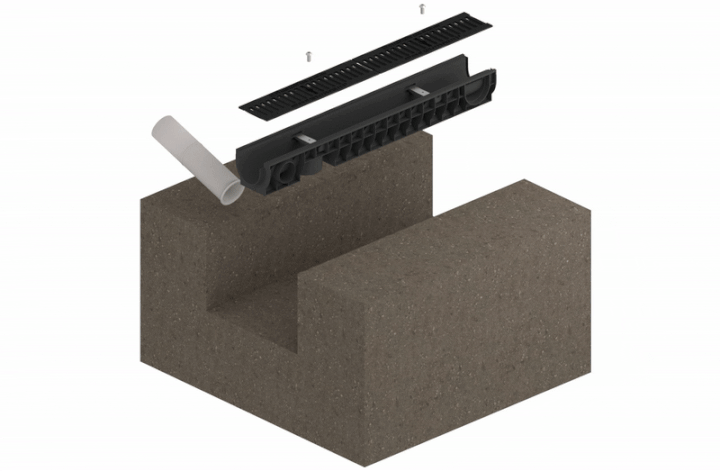

Ground -

1. Prep the site and trench.

2. Place leveling sand (if preferred) in bottom of the trench.

3. Connect outlet piping to your system.

4. Lay Spark system in trench, connecting units as you go along. Including end caps and 90 Degree turns.



QUICK ANSWER GUIDE -



1. We recommend silicone or a sealant in-between channels for water tight connection. - We have our own!

2. Silicone or sealant also recommending in pipe outlet connection.

3. Grates can easily be removed for cleaning.

4. Call us with any other questions.

Questions & Answers

Have a Question?

Be the first to ask a question about this.

Ask a Question

3D Model of Spark 2 System

Zoom in and out as well as drag and turn, to see the Spark 2 channel at every angle. You can also view in AR (Augmented Reality) from your compatible cell phone to see how it would look in your yard!
