Manhole Cover - LOGO Design

  • 31.5" External Diameter and 24" Internal Diameter - 4" Height
  • PPE Plastic with Steel Reinforced bars
  • B Class - 27,500 lb load rating - Vehicle load rated
  • Bolt down installation holes on entire perimeter
  • Bolt down locking lid - hinged for removal if needed
  • More product details below
$180.00
Free Shipping Over $99
FedEx 3-5 Days

Our manhole covers are great. Made from a high composite PPE Plastic, they are actually B class road rated, and you can drive over them yes. They have steel bar reinforcements inside that can be removed to get in your space. Bolted lock mechanism to make sure its secure and not everyone can go inside your opening. This is one of our top sellers as Standarpark is the only company who manufactures anything of the sort.

SPEC SHEET

PARAMETERS

Article ................................... PMH35188-LOGO

Material ................................ PPE Plastic / Steel

Dimensions .......................... 31.5" Diameter (external) 24" (Internal)  x 4" H

Weight .................................. 25 LBS

Load Class ........................... B - 27,500 LBS

  CLOSED LID SPECIFICATION PDF

  OPEN LID SPECIFICATION PDF

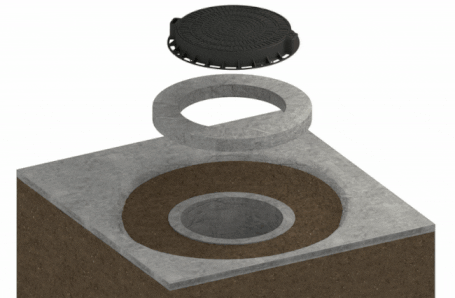

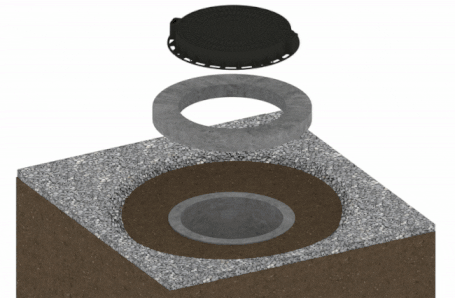

All of our manholes can be bolted down , sealed, or poured into your installation. Bolt holes are already specified on the outer ring of the manhole itself. Simply mark, drill and secure. Then pour around the system. The lid sits flush to the top of the manhole cover. This meaning you can make the top surface completely level with the top of the manhole / septic cover.

Questions & Answers

Ask a Question
  • are they rain tight inside?

    Yes they are water tight. Thank you

3D Model of our Manhole Cover!

Drag , move and zoom in and out to get a 3D view of our manhole cover! You can even use AR (Augmented Reality) on your AR compatible phones to place this in your installation to see how it looks in real time!
