Galvanized Steel Wall Slot System
Specifications and Downloads
- 4" Internal Width Micro Slot Drain System
- 5/8" Opening with multiple channel depth options
- 4" Height of slot grate from the channel
- Install up against wall or existing foundation with offset slot grate

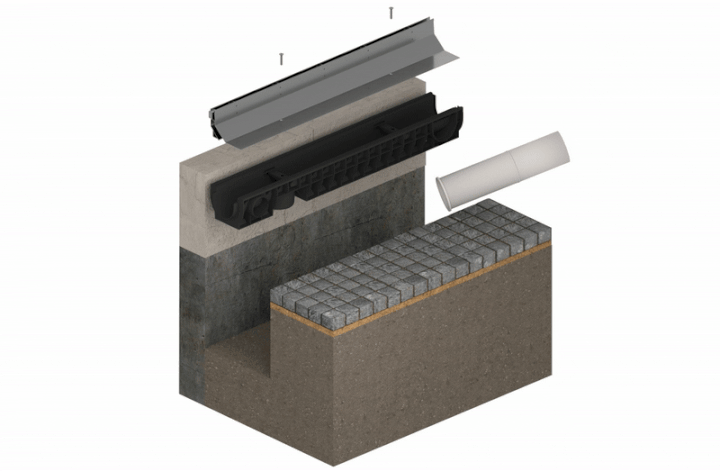

- Excellent for paver, tile, and concrete pours
- Perfect for driveways, pools, patios and heavy traffic areas
- ADA / Heel proof cap available as addition for debris protection
- #1 Rated Slot Drain system on the market
- Perfect for high water volume with little surface area coverage
- More product details below
- Grating Specification pdf
- grating specification cad
- 2 inch channel depth pdf
- 2 inch channel depth cad
- 3 inch channel depth pdf
- 3 inch channel depth cad
- 4 inch channel depth pdf
- 4 inch channel depth cad
- 6 inch channel depth pdf
- 6 inch channel depth cad
- 8 inch channel depth pdf
- 8 inch channel depth cad
- installation brochure
Product Description

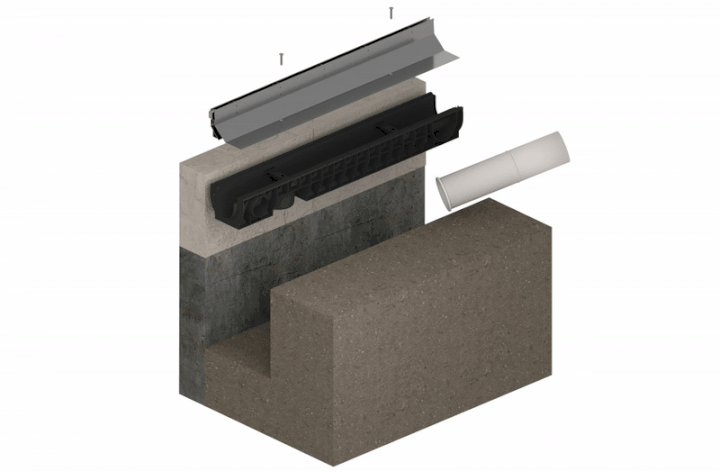

Connecting to each other with a tongue and groove connection. The slot grate has an opening of 5/8 inch and widens towards the channel. This is a patent feature that allows debris to pass throw the slot and not be stuck. Perfect for pools, porches, and any situation where grating is not necessary. Below are specifications.
The 2" depth and 3" depth have bottom outlets for pipe connection.
The 4" depth through 8" depth have bottom, side, and end cap outlets.
All with 3" and 4" pipe outlet connections.
PARAMETERS
Channel Length - 3.3 Feet (39 inches) - Connect end to end.
Material ............. PPE Plastic / Galvanized Stamped Steel WALL
Load Class ....... Heavy Duty Load
INCLUDED IN PACKAGE
1 - Channel Depth of Choice
1 - Galvanized Stamped Steel WALL Slot Grating
2 - End Caps (Per Order) - Additional end caps at checkout.
