Fiber Concrete Catch Basin 15x20

  • 15"x20"x36" Concrete Catch Basin with Sediment Trap
  • Connects to 6,8,10, and 12 inch PVC or Corrugated pipe
  • Heavy Duty Grating and Steel Reinforcements
  • Sediment basket included
  • Perfect for no concrete installation if needed.
  • More product details below
$650.00
Free Shipping Over $99
FedEx 3-5 Days

Our new 15x20 inch, two tier Fiber Concrete Catch Basin is perfect for a quick one time installation for an extremely durable solution without the need for a concrete pour. Excellent solution for a gravel driveway, retrofit, or a deep solution. The basin is 15x20 inches edge to edge perimeter and 36 inches depth. Includes a sediment basket as well as grating, frame and comes fully assembled. Outlet connection to be cut and attached to any pipe size up to 8 inches.

PARAMETERS

Article ................................ CCB 04700

Material ............................. Fiber Reinforced Concrete - Cast Iron - Galv Steel

Dimensions ....................... 20" L x 15" W x 36" H

Load Class ....................... E - 132,000 LBS

INCLUDED IN PACKAGE

1 - Two Tier Catch Basin

- Ductile Cast Iron Grate

1 - Debris Basket

  SPECIFICATION SHEET

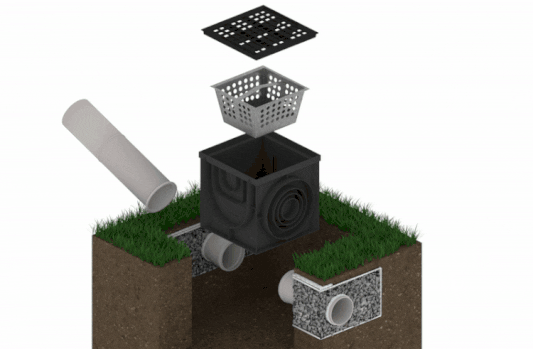

Catch Basin Installation

1.  Make sure you leave 3-4 inches on all sides for your system installations during your dig. This includes your bottom base area.

2. Take in account your outlet or piping connection within your prep.

3. Test your basin to pipe connection before placing or setting your basin.

4. Pour a good 3-4 inch base and let set 75% cure.

5. Set basin and pour around all sides and let set - make sure to leave your grating within your basin to avoid movement when concrete settles.

NOTE - this can all be done with dirt / grass / gravel if needed. Concrete NOT required with this system.
