Our 8" Drive channel is fitted with D Class bolted down ductile cast iron grates. Galvanized stamped steel side reinforcements. These are industrial level channels heavy enough for forklifts and extremely heavy loads. These are 8" internal width, and 8" deep. 3.3 ft in length. Tongue and groove connections for easy installation. We recommend using the 8" installation brackets for rebar installation if needed.
SPEC SHEET
Parameters
Article .............................. PCM085434
Material ........................... PPE Plastic - Galvanized Steel - Ductile Cast Iron
Dimensions ..................... 39.4" L x 10.5" W x 8.5" H
Weight ............................ 45 LBS
Load Class ..................... D Class - 88,000 LBS
INCLUDED IN PACKAGE
1 - 8" Drive Channel
2 - End Caps (Per Order) - Additional end caps at checkout.
CHANNEL SPECIFICATION PDF
Trench Drain Installation
1. Prep your area - prep your channel width and depth accordingly to the trench drain you purchased from us. You need a good amount of room (3-5 inches) to set your channel and pour or fill around it to have a nice level sound area with your finished project.
2. If pouring concrete, make sure the base (2-4 inches) is leveled out according to your site plan. Wait for the concrete to completely set before moving on.
3. Set your channels on the concrete pad, attach together and connect your pipe outlets according to your design. Pipe connections are designed for PVC and Drainage tile - if you wish to utilized a corrugated pipe, please use a rubber coupling with clamps. That makes for a snug fit. Seal all channels with clear silicone and make sure they are water tight and dry before your final concrete pour.
4. Standartpark recommends leaving your gratings in the channel when you are doing your final pour - this will alleviate any instances of your channels bending while the concrete sets. This is important so your gratings fit nice and snug after the concrete settles.
5. Pour and wait - Thats all!

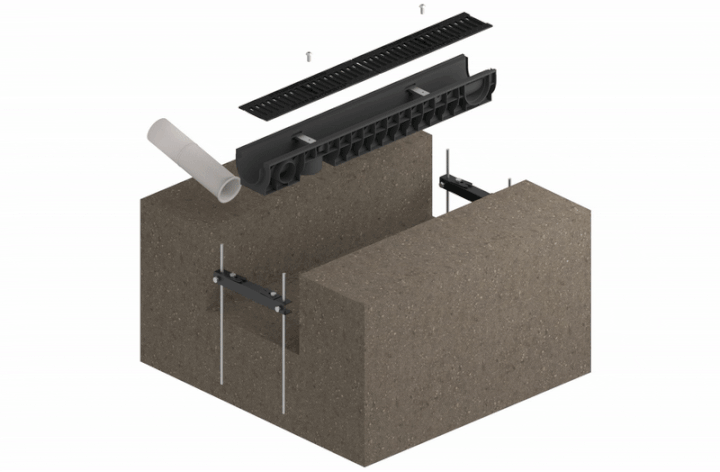

NOTE - This package can also be used with our channel installation brackets for rebar installation (hanging installation).
