8" Channel Cast Iron ADA Package

  • 8" Internal width Cast Iron ADA Package
  • Two Channel depth options - 3 inch and 8 inch
  • Comes with Cast Iron grate, channel, brackets and end caps
  • Heavy Duty Load Rated
  • Connect multiple channels for longer run
  • 3" and 4" PVC or Corrugated pipe bottom outlet options
  • 4" PVC or Corrugated pipe options out of the included end caps on the 8" Depth Option
  • More product details below
$245.00
Free Shipping Over $299
FedEx 3-5 Days

Product details

8 inch internal cast iron ADA channel package comes with one channel with the depth of your choice. Two units of our C Class cast iron slotted grating, grating fasteners and end caps. On the 3" channel depth option you have a 4 and 6 inch bottom outlet. On the 8" Channel Depth option , the channel is fitted with a 4" out of the end cap, 4 and 6 inch out of the bottom, as well as a 4" out of the side of the system. 90 degree turns are already fitted on to the channel itself as well, so no adapters are needed. The Grating is C Class Cast Iron ADA Approved.



PARAMETERS

Article Numbers;

8" Depth - PC 8540

3" Depth - PC 8510

Cast Iron Grate - 25403-ADA

Material ................... PPE PLASTIC / Ductile Cast Iron

Load Class .............. C Class - 55,000 LBS

INCLUDED IN PACKAGE

1 Unit - Channel Depth of Choice

2 Units - Ductile Cast Iron Grates - ADA

2 Units - Grating Fasteners

- End Caps (Per Order) - Additional end caps at checkout.

Specification Sheet

  8" Depth Channel Spec

  3" Depth Channel Spec

  ADA Cast Iron Spec

Installation

Trench Drain Installation

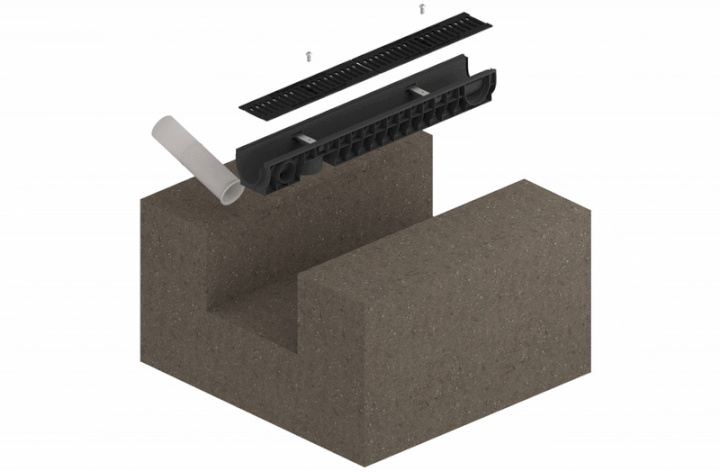

1. Prep your area -  prep your channel width and depth accordingly to the trench drain you purchased from us. You need a good amount of room (3-5 inches) to set your channel and pour or fill around it to have a nice level sound area with your finished project.



2. If pouring concrete, make sure the base (2-4 inches) is leveled out according to your site plan. Wait for the concrete to completely set before moving on.



3. Set your channels on the concrete pad, attach together and connect your pipe outlets according to your design. Pipe connections are designed for PVC and Drainage tile - if you wish to utilized a corrugated pipe, please use a rubber coupling with clamps. That makes for a snug fit. Seal all channels with clear silicone and make sure they are water tight and dry before your final concrete pour.



4. Standartpark recommends leaving your gratings in the channel when you are doing your final pour - this will alleviate any instances of your channels bending while the concrete sets. This is important so your gratings fit nice and snug after the concrete settles.



5. Pour and wait - Thats all!

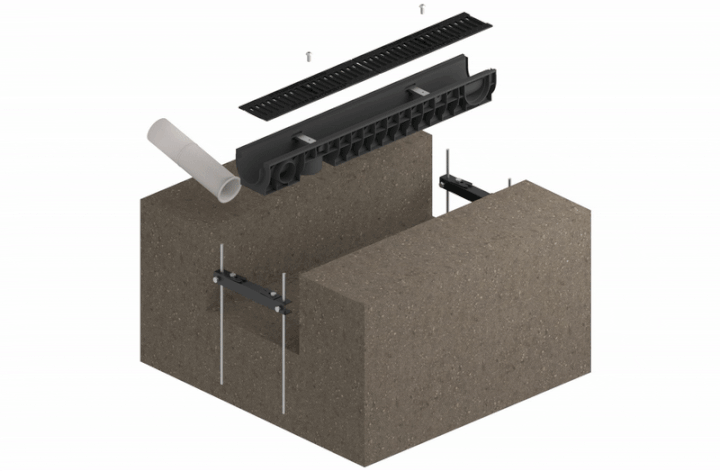

NOTE - This package can also be used with our channel installation brackets for rebar installation (hanging installation).

Q&A's

Questions & Answers

Ask a Question
  • Need to use 6in pipe. Will this work on pc8540?

    Yes, you can connect a 6" piping to this channel. Not a problem at all. Thank you!

Customer Photos

8 inch internal cast iron ADA channel package comes with one channel with the depth of your choice. Two units of our C Class cast iron slotted grating, grating fasteners and end caps. On the 3" channel depth option you have a 4 and 6 inch bottom outlet. On the 8" Channel Depth option , the channel is fitted with a 4" out of the end cap, 4 and 6 inch out of the bottom, as well as a 4" out of the side of the system. 90 degree turns are already fitted on to the channel itself as well, so no adapters are needed. The Grating is C Class Cast Iron ADA Approved.



PARAMETERS

Article Numbers;

8" Depth - PC 8540

3" Depth - PC 8510

Cast Iron Grate - 25403-ADA

Material ................... PPE PLASTIC / Ductile Cast Iron

Load Class .............. C Class - 55,000 LBS

INCLUDED IN PACKAGE

1 Unit - Channel Depth of Choice

2 Units - Ductile Cast Iron Grates - ADA

2 Units - Grating Fasteners

- End Caps (Per Order) - Additional end caps at checkout.

  8" Depth Channel Spec

  3" Depth Channel Spec

  ADA Cast Iron Spec

Trench Drain Installation

1. Prep your area -  prep your channel width and depth accordingly to the trench drain you purchased from us. You need a good amount of room (3-5 inches) to set your channel and pour or fill around it to have a nice level sound area with your finished project.



2. If pouring concrete, make sure the base (2-4 inches) is leveled out according to your site plan. Wait for the concrete to completely set before moving on.



3. Set your channels on the concrete pad, attach together and connect your pipe outlets according to your design. Pipe connections are designed for PVC and Drainage tile - if you wish to utilized a corrugated pipe, please use a rubber coupling with clamps. That makes for a snug fit. Seal all channels with clear silicone and make sure they are water tight and dry before your final concrete pour.



4. Standartpark recommends leaving your gratings in the channel when you are doing your final pour - this will alleviate any instances of your channels bending while the concrete sets. This is important so your gratings fit nice and snug after the concrete settles.



5. Pour and wait - Thats all!

NOTE - This package can also be used with our channel installation brackets for rebar installation (hanging installation).

Questions & Answers

Ask a Question
  • Need to use 6in pipe. Will this work on pc8540?

    Yes, you can connect a 6" piping to this channel. Not a problem at all. Thank you!
