4" Channel - 8" Depth - Ductile Cast Iron Slotted PKG

  • 4" Internal width - 8" Depth Trench Drain Package
  • Comes with Cast Iron Grate, channel, brackets and end caps
  • Vehicle Load Rated
  • Connect multiple channels for longer run
  • 4" PVC or Corrugated pipe bottom outlet option on each channel
  • 3" PVC or Corrugate pipe outlet option out of end caps
  • More product details below
$140.00
Free Shipping Over $99
FedEx 3-5 Days

If you are looking for a large amount of water collection with a 4" channel, our PC8040 channel is for you. At 3.3 FT in length, 8 inches in depth it will carry a very large amount of sudden water away from anywhere you need. This package includes Ductile Cast Iron grating, grating fasteners, and 2 end caps. Everything you need , in one package.

CHANNEL SPEC SHEET

GRATING SPEC SHEET

PARAMETERS

Article ................ PC8040

Material ............. PPE Plastic / Ductile Cast Iron

Dimensions ....... 39.4"L x 5.8"W x 8"H

Load Class ....... C Class - 55,000 LBS

INCLUDED IN PACKAGE

- PC8040 Channel

2 - Ductile Cast Iron Grates (slotted)

2 - Grating Fasteners

2 - End Caps (Per Order) - Additional end caps at checkout.

  CHANNEL SPECIFICATION PDF

  Grating Specification Sheet

Trench Drain Installation

1. Prep your area -  prep your channel width and depth accordingly to the trench drain you purchased from us. You need a good amount of room (3-5 inches) to set your channel and pour or fill around it to have a nice level sound area with your finished project.



2. If pouring concrete, make sure the base (2-4 inches) is leveled out according to your site plan. Wait for the concrete to completely set before moving on.



3. Set your channels on the concrete pad, attach together and connect your pipe outlets according to your design. Pipe connections are designed for PVC and Drainage tile - if you wish to utilized a corrugated pipe, please use a rubber coupling with clamps. That makes for a snug fit. Seal all channels with clear silicone and make sure they are water tight and dry before your final concrete pour.



4. Standartpark recommends leaving your gratings in the channel when you are doing your final pour - this will alleviate any instances of your channels bending while the concrete sets. This is important so your gratings fit nice and snug after the concrete settles.



5. Pour and wait - Thats all!

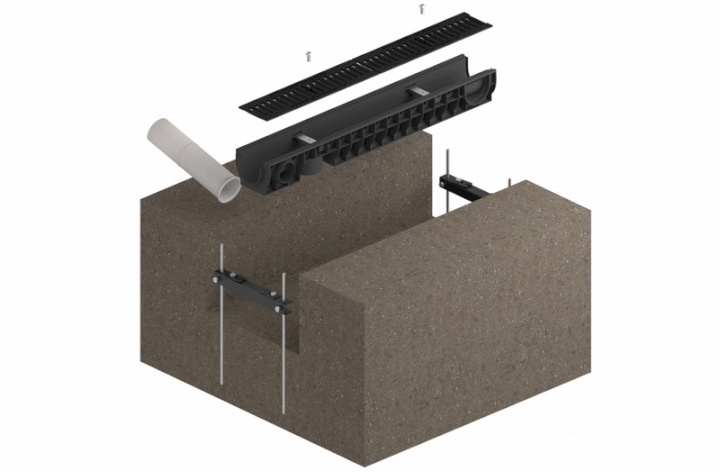

NOTE - This package can also be used with our channel installation brackets for rebar installation (hanging installation).

Questions & Answers

Have a Question?

Be the first to ask a question about this.

Ask a Question

4 Inch Channel - 8 Inch Depth Trench Drain System

4" Channel - 8 Inch Depth Trench Drain System. Multiple outlet and customization options for your project. See video for in depth detail.
