Specifications and Downloads

  • 4" Internal width plastic grating package

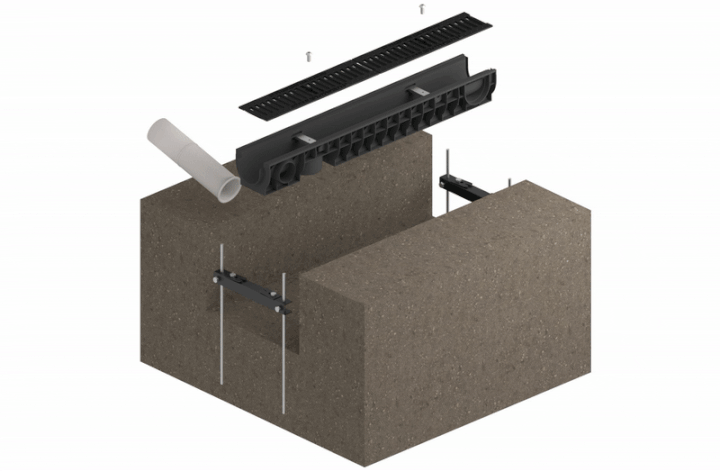

  • Comes with plastic grate, channel, brackets and end caps
  • Pedestrian load rated
  • Connect multiple channels for longer run
  • 4" PVC or corrugated pipe bottom outlet option on each channel (with 3" depth and deeper)
  • 3" PVC or corrugate pipe outlet option out of end caps (with the  4",6", and 8" depth channels)
  • More product details below
  • grating pdf
  • 2 inch channel depth pdf
  • 2 inch channel depth cad
  • 3 inch channel depth pdf
  • 3 inch channel depth cad
  • 4 inch channel depth pdf
  • 4 inch channel depth cad
  • 6 inch channel depth pdf
  • 6 inch channel depth cad
  • 8 inch channel depth pdf
  • 8 inch channel depth cad
  • installation brochure

Product Description

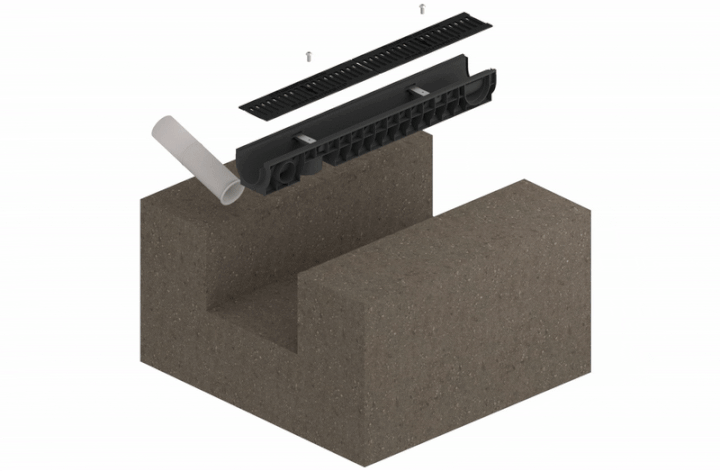

 Our 4" Channel Plastic Grating Package is loaded with a multitude of customization and options. Each package includes the channel depth of choice, gratings and fasteners (if needed) and two end caps (per order). Each channel is 3.3 ft in length, with a tongue and groove connection so you can attach end to end to create a longer and custom size run. In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth.

Channel Articles

2" Depth - PC8050 - 2" bottom outlet

3" Depth - PC8010 - 4" bottom outlet

4" Depth - PC8020 - 4" bottom outlet - 3" end cap outlet - 3" side outlet

6" Depth - PC8000 - 4" bottom outlet - 3" end cap outlet - 3" side outlet

8" Depth - PC8040 - 4" bottom outlet - 3" end cap outlet - 3" side outlet

Material ............. PPE Plastic

Dimensions ....... 39.4"L x 5.8"W

Load Class ....... A Class - 3,300 LBS

INCLUDED IN PACKAGE

- Channel Depth of Choice

2 - Units of Plastic Grating

2 - Grating Fasteners

2 - End Caps  (Per Order) - Additional end caps at checkout.
