4" Channel Galvanized Steel B Class Package (ADA)

  • 4" Internal width Galvanized Steel B Class ADA Package
  • Comes with Galvanized Steel Grate, channel, brackets and end caps
  • Vehicle Load Rated, ADA Compliant
  • Connect multiple channels for longer run
  • 4" PVC or Corrugated pipe bottom outlet option on each channel (3" Depth and Deeper)
  • 3" PVC or Corrugate pipe outlet option out of end caps (on the 4",6" and 8" channel depth options)
  • More product details below
$88.00
Free Shipping Over $299
FedEx 3-5 Days

Product details

This package is fitted with our ADA approved Galvanized Steel B CLASS grating which has a weight load rating at 27,500 lbs. Making it available to drive over as well as forklift rated as well.  Nice rich look / feel as well. Comes with end caps, channel brackets for fastening grating down tight, and of course the channel itself.

Each channel is 3.3 ft in length, with a tongue and groove connection so you can attach end to end to create a longer and custom size run. In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth.



Channel Articles

2" Depth - PC8050 - 2" bottom outlet

3" Depth - PC8010 - 4" bottom outlet

4" Depth - PC8020 - 4" bottom outlet - 3" end cap outlet - 3" side outlet

6" Depth - PC8000 - 4" bottom outlet - 3" end cap outlet - 3" side outlet

8" Depth - PC8040 - 4" bottom outlet - 3" end cap outlet - 3" side outlet

Material ............. PPE Plastic

Dimensions ....... 39.4"L x 5.8"W

Load Class ....... B Class - 27,500 LBS

INCLUDED IN PACKAGE

- Channel Depth of Choice

1 - Unit Galvanized Steel B Class Grating

2 - Grating Fasteners

2 - End Caps  (Per Order) - Additional end caps at checkout.

Specification Sheet

  3" Depth Channel Spec

  4" Depth Channel Spec

  6" Depth Channel Spec

  8" Depth Channel Spec

  Grating Specification

Installation

Trench Drain Installation

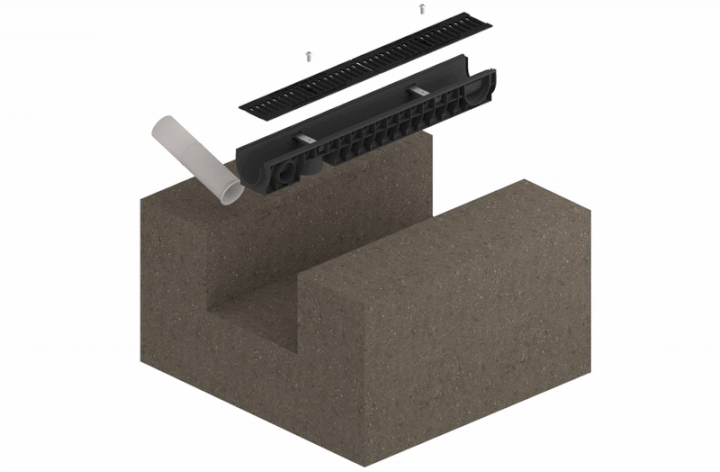

1. Prep your area -  prep your channel width and depth accordingly to the trench drain you purchased from us. You need a good amount of room (3-5 inches) to set your channel and pour or fill around it to have a nice level sound area with your finished project.



2. If pouring concrete, make sure the base (2-4 inches) is leveled out according to your site plan. Wait for the concrete to completely set before moving on.



3. Set your channels on the concrete pad, attach together and connect your pipe outlets according to your design. Pipe connections are designed for PVC and Drainage tile - if you wish to utilized a corrugated pipe, please use a rubber coupling with clamps. That makes for a snug fit. Seal all channels with clear silicone and make sure they are water tight and dry before your final concrete pour.



4. Standartpark recommends leaving your gratings in the channel when you are doing your final pour - this will alleviate any instances of your channels bending while the concrete sets. This is important so your gratings fit nice and snug after the concrete settles.



5. Pour and wait - Thats all!

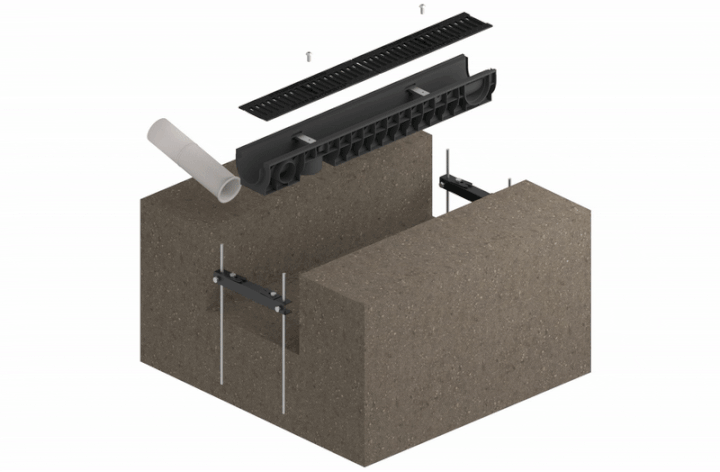

NOTE - This package can also be used with our channel installation brackets for rebar installation (hanging installation).

Q&A's

Questions & Answers

Ask a Question
  • Can we install a new 4' channel x 4.2" drain against an already existing concrete slab?

    Yes, but if its going to be driven on, it needs to be surrounded by concrete for stability.

Customer Photos

This package is fitted with our ADA approved Galvanized Steel B CLASS grating which has a weight load rating at 27,500 lbs. Making it available to drive over as well as forklift rated as well.  Nice rich look / feel as well. Comes with end caps, channel brackets for fastening grating down tight, and of course the channel itself.

Each channel is 3.3 ft in length, with a tongue and groove connection so you can attach end to end to create a longer and custom size run. In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth.



Channel Articles

2" Depth - PC8050 - 2" bottom outlet

3" Depth - PC8010 - 4" bottom outlet

4" Depth - PC8020 - 4" bottom outlet - 3" end cap outlet - 3" side outlet

6" Depth - PC8000 - 4" bottom outlet - 3" end cap outlet - 3" side outlet

8" Depth - PC8040 - 4" bottom outlet - 3" end cap outlet - 3" side outlet

Material ............. PPE Plastic

Dimensions ....... 39.4"L x 5.8"W

Load Class ....... B Class - 27,500 LBS

INCLUDED IN PACKAGE

- Channel Depth of Choice

1 - Unit Galvanized Steel B Class Grating

2 - Grating Fasteners

2 - End Caps  (Per Order) - Additional end caps at checkout.

  3" Depth Channel Spec

  4" Depth Channel Spec

  6" Depth Channel Spec

  8" Depth Channel Spec

  Grating Specification

Trench Drain Installation

1. Prep your area -  prep your channel width and depth accordingly to the trench drain you purchased from us. You need a good amount of room (3-5 inches) to set your channel and pour or fill around it to have a nice level sound area with your finished project.



2. If pouring concrete, make sure the base (2-4 inches) is leveled out according to your site plan. Wait for the concrete to completely set before moving on.



3. Set your channels on the concrete pad, attach together and connect your pipe outlets according to your design. Pipe connections are designed for PVC and Drainage tile - if you wish to utilized a corrugated pipe, please use a rubber coupling with clamps. That makes for a snug fit. Seal all channels with clear silicone and make sure they are water tight and dry before your final concrete pour.



4. Standartpark recommends leaving your gratings in the channel when you are doing your final pour - this will alleviate any instances of your channels bending while the concrete sets. This is important so your gratings fit nice and snug after the concrete settles.



5. Pour and wait - Thats all!

NOTE - This package can also be used with our channel installation brackets for rebar installation (hanging installation).

Questions & Answers

Ask a Question
  • Can we install a new 4' channel x 4.2" drain against an already existing concrete slab?

    Yes, but if its going to be driven on, it needs to be surrounded by concrete for stability.
