4" Channel - 4.2" Depth - Brass Grate PKG

  • 4" Internal width - 4.2" Depth Trench Drain Package
  • Comes with 100% Brass Grate, channel, brackets and end caps
  • Pedestrian Load Rated
  • Connect multiple channels for longer run
  • 4" PVC or Corrugated pipe bottom outlet option on each channel
  • 3" PVC or Corrugate pipe outlet option out of end caps
  • More product details below
Free Shipping Over $99
FedEx 3-5 Days

Our PC8020 is one of our best sellers because its a great standard depth to conquer home needs and industrial drainage needs. Each channel is 3.3 FT in length, 4.2 inches in depth and comes with 100% Brass Grate, grating fasteners, and end caps. Tongue and groove connections are used to attach both channels to make for easy installation.





Article ................ PC8020

Material ............. PPE Plastic / Brass

Dimensions ....... 39.4"L x 5.8"W x 4.2"H

Load Class ....... A Class - 3,300 LBS


- PC8020 Channel

2 - Brass Gratings

2 - End Caps  (Per Order) - Additional end caps at checkout.

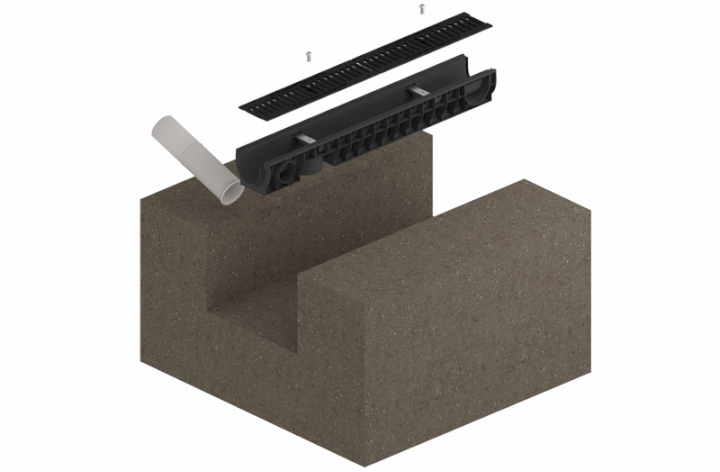

Trench Drain Installation

1. Prep your area -  prep your channel width and depth accordingly to the trench drain you purchased from us. You need a good amount of room (3-5 inches) to set your channel and pour or fill around it to have a nice level sound area with your finished project.


2. If pouring concrete, make sure the base (2-4 inches) is leveled out according to your site plan. Wait for the concrete to completely set before moving on.


3. Set your channels on the concrete pad, attach together and connect your pipe outlets according to your design. Pipe connections are designed for PVC and Drainage tile - if you wish to utilized a corrugated pipe, please use a rubber coupling with clamps. That makes for a snug fit. Seal all channels with clear silicone and make sure they are water tight and dry before your final concrete pour.


4. Standartpark recommends leaving your gratings in the channel when you are doing your final pour - this will alleviate any instances of your channels bending while the concrete sets. This is important so your gratings fit nice and snug after the concrete settles.


5. Pour and wait - Thats all!

NOTE - This package can also be used with our channel installation brackets for rebar installation (hanging installation).
