12x12 Catch Basin w/ Green Grating PKG

  • 12" Squared Catch Basin with Green Plastic Grating
  • Pedestrian Load Rated
  • Connects to 2,3,4 and 6 inch PVC and Corrugated piping
  • ADA and Heel Proof compliant
  • More product details below
$67.00
Free Shipping Over $99
FedEx 3-5 Days

Our 12x12 catch basins are perfectly designed to fit and work with all your drainage needs. With 2",3",4" and 6" PVC size connections, and fitted with multiple grating options, and always will come with two partitions and a debris basket to catch those leaves and debris from getting into your system. We pride ourselves with our unique grating options and style. Thank you

BASIN SPEC SHEET

GRATING SPEC SHEET

PARAMETERS

Article ................................ SWI8370

Material ............................. PPE Plastic

Dimensions ....................... 12" L x 12" W x 12" H

Load Class ....................... A - 3,300 LBS

INCLUDED IN PACKAGE

1 - 12x12 Catch Basin

- Plastic Grating

1 - Debris Basket

- Partitions

  Basin Specification Sheet

  Grating Specification Sheet

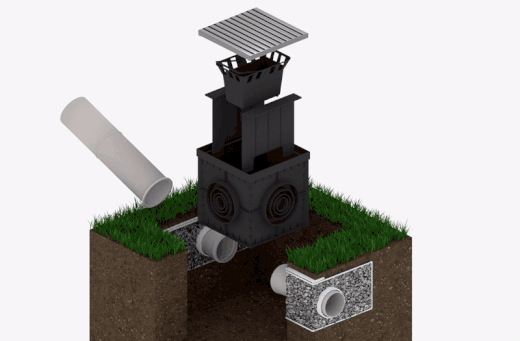

Catch Basin Installation

1.  Make sure you leave 3-4 inches on all sides for your system installations during your dig. This includes your bottom base area.

2. Take in account your outlet or piping connection within your prep.

3. Test your basin to pipe connection before placing or setting your basin.

4. Pour a good 3-4 inch base and let set 75% cure.

5. Set basin and pour around all sides and let set - make sure to leave your grating within your basin to avoid movement when concrete settles.

NOTE - this can all be done with dirt / grass / gravel if needed. Concrete is require if heavy loads are to be applied to basin!

Questions & Answers

Ask a Question
  • Will this unit work with flexible corrugated 4" drain pipe. Picture shows PVC pipe. Thanks.

    Yes, it will work with currugated. The photo is just an illustration on showing there ARE pipe connections. Thank you
